Best Niche Antibody-based Biologics



Part No. P7093F
Regular price
$ 499.00
Sale price
$ 499.00
Regular price
Out of Stock
Unit price

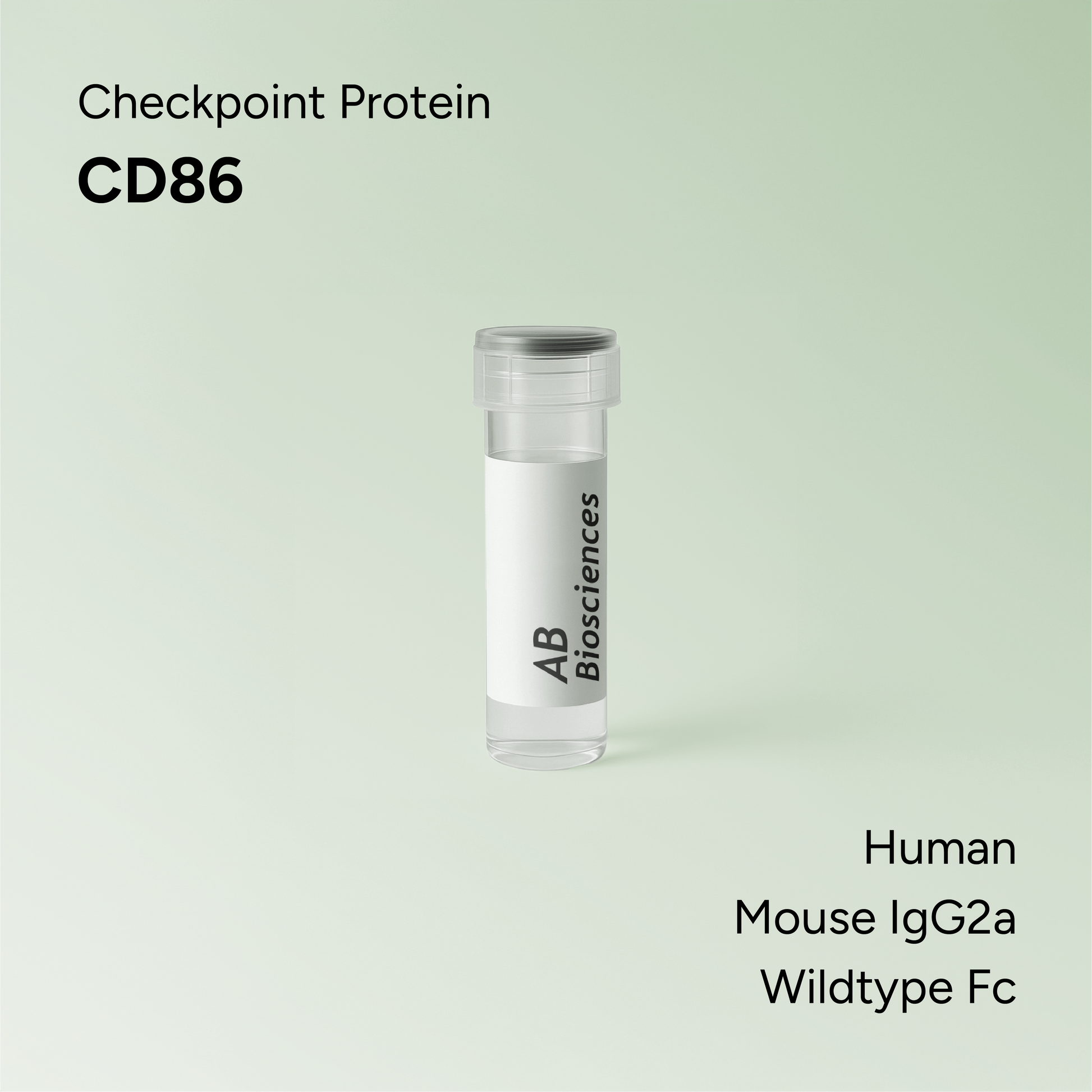

CD86 acts as a T cell co-stimulatory ligand via its interaction with CD28 and acts as a T cell activation inhibitory ligand via its interaction with CTLA-4. CD86 interacts with CTLA-4 with 20-100 folds high affinity than to CD28. P7093F contains both extracellular IgV and IgC domains of human B7-2(CD86) and is fused with a mouse IgG2a Fc domain.

Interacting protein(s): CD28, CTLA-4 (P7095F, P7095G)
Related products: Checkpoint Proteins

For orders over 1 mg please inquire here.

Quick Spec

Species: Human
Catalog No.: P7093F
Synonym: B7.2, B70, Activation B7-2 antigen, BU63, Fun-1
Tag: mouse IgG2a-Fc
GenBank Accession: NM_175862
SwissPro Accession: P42081
Construction: h.B7-2 (A24–I246)-m.IgG-Fc
Expression Host: 293T
MW (Calculated): 52,580 daltons
MW (SDS-PAGE): 55 Kd
Abs 0.1% (= 1 mg/ml): 1.065
Purity: 95 %


B7-2(CD86) and B7-1 are composed of a membrane distal IgV and membrane-proximal IgC domains in their extracellular regions. While B7-2(CD86) and B7-1 share similar extracellular Ig folds and can bind to both CD28 and CTLA-4, the intracellular domains of these two molecules share no homology indicating each bears distinct signaling mechanism. Both B7-2(CD86) and B7-1 bind to CD28 at lower affinity than to CTLA-4. For binding to CTLA-4, B7-2(CD86) has a lower affinity than B7-1. The apparent dimeric structure of B7-2(CD86) and B7-1 leads to unique B7-receptor alternating zipper-like complexes.

B7-2(CD86) is expressed at high levels on resting monocytes, but not resting T or B lymphocytes. The IgV of B7-2(CD86) binds to CD28 and CTLA-4 with the same affinity as those of the full length extracellular domain, yet both IgV and IgC domains of B7-1 are required for optimal binding to these receptors. B7-2(CD86) is up-regulated on activated B- , T-lymphocytes, monocytes and Langerhans cells within 24 hours, followed by the up-regulation of the B7-1 at about day 3. Interactions of B7-2(CD86) and B7-1 with CD28 provide positive co-stimulatory signals for activated T cells.

The B7-2(CD86) deficiency has a more profound immunological impact on function of T cells (such as T-dependent antibody production) than B7-1 deficiency. Some studies suggest that the co-stimulatory activity of B7-2(CD86) is skewed toward Th2, and B7-1, Th1, response.

Amino Acid Sequence


  1. Cloning of B7-2: a CTLA-4 counter-receptor that costimulates human T cell proliferation. Freeman G.J., Gribben J.G., Boussiotis V.A., Ng J.W., Restivo V.A. Jr., Lombard L.A., Gray G.S., Nadler L.M. Science 262:909-911 (1993)
  2. CD80 (B7) and CD86 (B70) provide similar costimulatory signals for T cell proliferation, cytokine production, and generation of CTL. Lanier L.L., O'Fallon S., Somoza C., Phillips J.H., Linsley P.S., Okumura K., Ito D., Azuma M.J. Immunol. 154:97-105 (1995)
  3. The B7-2 (B70) costimulatory molecule expressed by monocytes and activated B lymphocytes is the CD86 differentiation antigen. Engel P., Gribben J.G., Freeman G.J., Zhou L.J., Nozawa Y., Abe M., Nadler L.M., Wakasa H., Tedder T.F. Blood 84:1402-1407 (1994)
